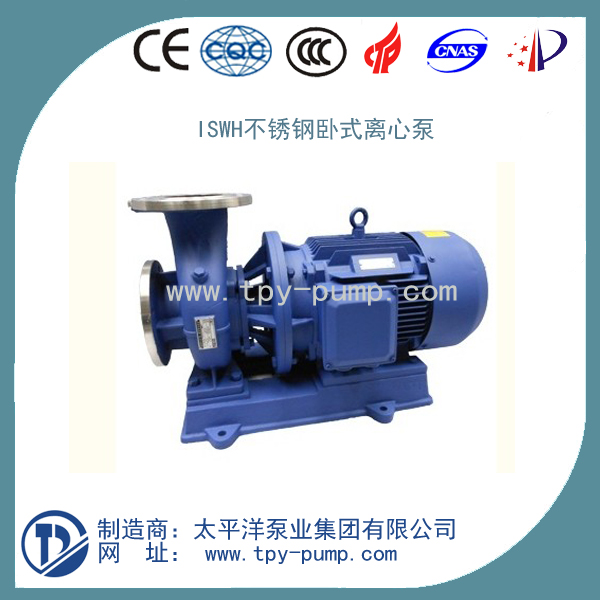

TPW臥式管道泵
- 型 號：
- 類 別：
- 價 格：￥咨詢
- 產 地：
-
產品詳細介紹
產品描述
TPW臥式管道泵產品說明：
1、吸入壓力≤1.0MPa,或泵系統最高工作壓力≤1.6MPa，即泵吸入口壓力+泵揚程≤1.6MPa，泵靜壓試驗壓力為2.5MPa。訂貨時請注明系統工作壓力，泵系統工作壓力大于1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部件和聯接部分采用鑄鋼材料。
2、環境溫度<40℃，相對濕度<95% 。
3、所輸送介質中固體顆粒體積含量不超過單位體積的0.1% ，粒度<0.2mm 。
4、注：如使用介質為帶有細小顆粒，請在訂貨時說明，以便廠家采用耐磨式機械密封。
TPW臥式管道泵?產品特點：
1、運行平穩：泵軸的絕對同心度葉輪優異的動靜平衡，保證平穩運行，絕無振動。
2、噪音低：兩個低噪音軸承下的水泵，運轉平穩，除電機微弱聲響，基本無噪聲。
3、滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。
4、故障率低：結構簡單合理，關鍵部分采用國際一流品質配套，整機無故障工作時間大大提高。
5、占地更?。撼隹诳上蜃?、向右、向上三個方向，便于管道布置安裝，節省空間。
6、維修方便：更換密封、軸承、簡易方便。
性能參數
|
型號 |
流量Q |
|
揚程 |
效率（%） |
轉速（r/min） |
電機功率（kW） |
必需汽蝕余量（NPSH）r |
重量 |
|
|
(m3/h) |
(L/S) |
|
|
|
|
|
|
|
ISW15-80 |
1.5 |
0.42 |
8 |
34 |
2800 |
0.18 |
2.3 |
17 |
|
ISW20-110 |
2.5 |
0.69 |
15 |
34 |
2800 |
0.37 |
2.3 |
25 |
|
ISW20-160 |
2.5 |
0.69 |
32 |
25 |
2900 |
0.75 |
2.3 |
29 |
|
ISW25-110 |
4 |
1.11 |
15 |
42 |
2900 |
0.55 |
2.3 |
26 |
|
ISW25-1254 |
4 |
1.11 |
20 |
36 |
2900 |
0.75 |
2.3 |
28 |
|
ISW25-125A |
3.6 |
1 |
16 |
35 |
2900 |
0.55 |
2.3 |
27 |
|
ISW25-160 |
4 |
1.11 |
32 |
32 |
2900 |
1.5 |
2.3 |
39 |
|
ISW25-160A |
3.7 |
1.03 |
28 |
31 |
2900 |
1.1 |
2.3 |
34 |
|
ISW32-100 |
4.5 |
12.5 |
12.5 |
44 |
2900 |
0.55 |
2 |
27 |
|
ISW32-100I |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.75 |
2 |
32 |
|
ISW32-125 |
5 |
1.39 |
20 |
44 |
2900 |
0.75 |
2.3 |
28 |
|
ISW32-125A |
4.5 |
1.25 |
16 |
43 |
2900 |
0.55 |
2.3 |
28 |
|
ISW32-160 |
6.5 |
5 |
32 |
44 |
2900 |
1.5 |
2.3 |
39 |
|
ISW32-160A |
4 |
1.1 |
25 |
34 |
2900 |
1.1 |
2 |
38 |
|
ISW32-160I |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
2 |
47 |
|
ISW32-200 |
4.5 |
12.5 |
50 |
32 |
2900 |
3 |
2 |
55 |
|
ISW32-200I |
6.3 |
1.75 |
50 |
33 |
2900 |
4 |
2 |
43 |
|
ISW32-200A |
4 |
1.11 |
44 |
40 |
2900 |
2.2 |
2 |
74 |
|
ISW40-100 |
6.3 |
1.75 |
12.5 |
54 |
2900 |
0.55 |
2.3 |
32 |
|
ISW40-100A |
5.6 |
1.56 |
10 |
52 |
2900 |
0.37 |
2.3 |
32 |
|
ISW40-125 |
6.3 |
1.75 |
20 |
46 |
2900 |
1.1 |
2.3 |
34 |
|
ISW40-125A |
5.6 |
1.56 |
16 |
45 |
2900 |
0.75 |
2.3 |
33 |
|
ISW40-160 |
6.3 |
1.75 |
32 |
40 |
2900 |
2.2 |
2.3 |
47 |
|
ISW40-160A |
5.9 |
1.64 |
28 |
39 |
2900 |
1.5 |
2.3 |
43 |
|
ISW40-160B |
5.5 |
1.53 |
24 |
38 |
2900 |
1.1 |
2.3 |
38 |
|
ISW40-200 |
6.3 |
1.75 |
50 |
33 |
2900 |
4 |
2.3 |
74 |
|
ISW40-200A |
5.9 |
1.64 |
44 |
31 |
2900 |
3 |
2.3 |
62 |
|
ISW40-200B |
5.3 |
1.47 |
36 |
29 |
2900 |
2.2 |
2.3 |
52 |
|
ISW40-250 |
6.3 |
1.75 |
80 |
28 |
2900 |
7.5 |
2.3 |
105 |
|
ISW40-250A |
5.9 |
1.64 |
70 |
28 |
2900 |
5.5 |
2.3 |
98 |
|
ISW40-250B |
5.5 |
1.53 |
60 |
27 |
2900 |
4 |
2.3 |
77 |
|
ISW40-100I |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
34 |
|
ISW40-100IA |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
32 |
|
ISW40-125I |
12.5 |
347 |
20 |
58 |
2900 |
1.5 |
2.3 |
38 |
|
ISW40-125IA |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
33 |
|
型號 |
流量Q |
|
揚程 |
效率（%） |
轉速（r/min） |
電機功率（kW） |
必需汽蝕余量（NPSH）r |
重量 |
|
|
(m3/h) |
(L/S) |
|
|
|
|
|
|
|
ISW40-160I |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
56 |
|
ISW40-160IA |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
47 |
|
ISW40-160IB |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
43 |
|
ISW40-200I |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
85 |
|
ISW40-200IA |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
75 |
|
ISW40-200IB |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
63 |
|
ISW40-250I |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
145 |
|
ISW40-250IA |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
95 |
|
ISW40-250IB |
10.8 |
3 |
60 |
37 |
2900 |
5.5 |
2.3 |
94 |
|
ISW40-250IC |
10 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
88 |
|
ISW50-100 |
12.5 |
3.47 |
12.5 |
62 |
2900 |
1.1 |
2.3 |
36 |
|
ISW50-100A |
11 |
3.05 |
10 |
60 |
2900 |
0.75 |
2.3 |
35 |
|
ISW50-125 |
12.5 |
3.47 |
20 |
58 |
2900 |
1.5 |
2.3 |
43 |
|
ISW50-125A |
11 |
3.05 |
16 |
57 |
2900 |
1.1 |
2.3 |
38 |
|
ISW50-160 |
12.5 |
3.47 |
32 |
52 |
2900 |
3 |
2.3 |
59 |
|
ISW50-160A |
11.7 |
3.25 |
28 |
51 |
2900 |
2.2 |
2.3 |
51 |
|
ISW50-160B |
10.4 |
2.89 |
22 |
50 |
2900 |
1.5 |
2.3 |
47 |
|
ISW50-200 |
12.5 |
3.47 |
50 |
46 |
2900 |
5.5 |
2.3 |
101 |
|
ISW50-200A |
11.7 |
3.25 |
44 |
45 |
2900 |
4 |
2.3 |
80 |
|
ISW50-200B |
10.6 |
2.94 |
36 |
44 |
2900 |
3 |
2.3 |
68 |
|
ISW50-250 |
12.5 |
3.47 |
80 |
38 |
2900 |
11 |
2.3 |
160 |
|
ISW50-250A |
11.6 |
3.22 |
70 |
38 |
2900 |
7.5 |
2.3 |
115 |
|
ISW50-250B |
10.8 |
3 |
60 |
37 |
2900 |
5.5 |
2.3 |
114 |
|
ISW50-250C |
10 |
2.78 |
52 |
36 |
2900 |
5.5 |
2.3 |
108 |
|
ISW50-100I |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
41 |
|
ISW50-100IA |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
36 |
|
ISW50-125I |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
56 |
|
ISW50-125IA |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
48 |
|
ISW50-160I |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
72 |
|
ISW50-160IA |
23.4 |
6.5 |
28 |
62 |
2900 |
3 |
2.5 |
71 |
|
ISW50-160IB |
21.6 |
6 |
24 |
58 |
2900 |
2.2 |
2.5 |
59 |
|
ISW50-200I |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
108 |
|
ISW50-200IA |
23.5 |
6.53 |
44 |
57 |
2900 |
5.5 |
2.5 |
107 |
|
ISW50-200IB |
21.8 |
6.06 |
38 |
55 |
2900 |
4 |
2.5 |
100 |
|
ISW50-250I |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
175 |
|
型號 |
流量Q |
|
揚程 |
效率（%） |
轉速（r/min） |
電機功率（kW） |
必需汽蝕余量（NPSH）r |
重量 |
|
|
(m3/h) |
(L/S) |
|
|
|
|
|
|
|
ISW50-250IA |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
165 |
|
ISW50-250IB |
21.6 |
6 |
60 |
49 |
2900 |
7.5 |
2.5 |
165 |
|
ISW50-315I |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
310 |
|
ISW50-315IA |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
245 |
|
ISW50-315IB |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
215 |
|
ISW50-315IC |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
195 |
|
ISW65-100 |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
46 |
|
ISW65-100A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
41 |
|
ISW65-125 |
25 |
6.94 |
20 |
68 |
2900 |
3 |
2.5 |
58 |
|
ISW65-125A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
49 |
|
ISW65-160 |
25 |
6.94 |
32 |
63 |
2900 |
4 |
2.5 |
75 |
|
ISW65-160A |
23.4 |
6.5 |
28 |
62 |
2900 |
3 |
2.5 |
75 |
|
ISW65-160B |
21.6 |
6 |
24 |
58 |
2900 |
2.2 |
2.5 |
63 |
|
ISW65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
107 |
|
ISW65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
5.5 |
2.5 |
107 |
|
ISW65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
4 |
2.5 |
100 |
|
ISW65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
180 |
|
ISW65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
170 |
|
ISW65-250B |
21.6 |
6 |
60 |
49 |
2900 |
7.5 |
2.5 |
170 |
|
ISW65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
320 |
|
ISW65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
255 |
|
ISW65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
225 |
|
ISW65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
205 |
|
ISW65-100I |
50 |
13.9 |
12.5 |
73 |
2900 |
3 |
3 |
63 |
|
ISW65-100IA |
44.7 |
12.4 |
10 |
72 |
2900 |
2.2 |
3 |
53 |
|
ISW65-125I |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3 |
99 |
|
ISW65-125IA |
45 |
12.5 |
16 |
71 |
2900 |
4 |
3 |
78 |
|
ISW65-160I |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3 |
103 |
|
ISW65-160IA |
46.7 |
13 |
28 |
70 |
2900 |
5.5 |
3 |
103 |
|
ISW65-160IB |
43.3 |
12 |
24 |
69 |
2900 |
4 |
3 |
97 |
|
ISW65-200I |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3 |
176 |
|
ISW65-200IA |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3 |
166 |
|
ISW65-200IB |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3 |
114 |
|
ISW65-250I |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3 |
235 |
|
ISW65-250IA |
46.7 |
13 |
70 |
59 |
2900 |
18.5 |
3 |
205 |
|
型號 |
流量Q |
|
揚程 |
效率（%） |
轉速（r/min） |
電機功率（kW） |
必需汽蝕余量（NPSH）r |
重量 |
|
|
(m3/h) |
(L/S) |
|
|
|
|
|
|
|
ISW80-250I |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4 |
330 |
|
ISW80-250IA |
93.5 |
26 |
70 |
68 |
2900 |
30 |
4 |
315 |
|
ISW80-250IB |
87 |
24.2 |
60 |
66 |
2900 |
22 |
4 |
315 |
|
ISW80-315I |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4 |
675 |
|
ISW80-315IA |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4 |
535 |
|
ISW80-315IB |
90 |
25 |
101 |
65 |
2900 |
45 |
4 |
420 |
|
ISW80-315IC |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4 |
36 |
|
ISW100-100 |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
113 |
|
ISW100-100A |
89 |
47 |
10 |
74 |
2900 |
4 |
4.5 |
91 |
|
ISW100-125 |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
169 |
|
ISW100-125A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
118 |
|
ISW100-160 |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
191 |
|
ISW100-160A |
93.5 |
26 |
28 |
74 |
2900 |
11 |
4.5 |
181 |
|
ISW100-160B |
86.6 |
24.1 |
24 |
72 |
2900 |
7.5 |
4.5 |
181 |
|
ISW100-200 |
100 |
27.8 |
50 |
74 |
2900 |
22 |
4 |
245 |
|
ISW100-200A |
93.5 |
26 |
44 |
73 |
2900 |
18.5 |
4 |
215 |
|
ISW100-200B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4 |
193 |
|
ISW100-250 |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4 |
345 |
|
ISW100-250A |
93.5 |
26 |
70 |
68 |
2900 |
30 |
4 |
330 |
|
ISW100-250B |
87 |
24.2 |
60 |
66 |
2900 |
22 |
4 |
330 |
|
ISW100-315 |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4 |
689 |
|
ISW100-315A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4 |
549 |
|
ISW100-315B |
90 |
25 |
101 |
65 |
2900 |
45 |
4 |
439 |
|
ISW100-315C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4 |
385 |
|
ISW100-100I |
160 |
44.4 |
12.5 |
73 |
2900 |
11 |
4.5 |
115 |
|
ISW100-125I |
160 |
44.4 |
20 |
74 |
2900 |
15 |
4.5 |
168 |
|
ISW100-125IA |
140 |
39 |
17 |
72 |
2900 |
11 |
4.5 |
168 |
|
ISW100-160I |
160 |
44.4 |
32 |
79 |
2900 |
22 |
5.6 |
210 |
|
ISW100-160IA |
140 |
39 |
28 |
76 |
2900 |
18.5 |
5 |
210 |
|
ISW100-200I |
160 |
44.4 |
50 |
79 |
2900 |
37 |
5.2 |
402 |
|
ISW100-200IA |
140 |
39 |
45 |
74 |
2900 |
30 |
4.5 |
395 |
|
ISW100-200IB |
100 |
27.8 |
40 |
72 |
2900 |
22 |
4.5 |
360 |
|
ISW100-250I |
160 |
44. 4 |
80 |
77 |
2900 |
55 |
4.8 |
560 |
|
ISW100-250IA |
140 |
39 |
72 |
72 |
2900 |
45 |
4.5 |
420 |
|
ISW100-250IB |
100 |
27.8 |
65 |
70 |
2900 |
37 |
4.5 |
400 |

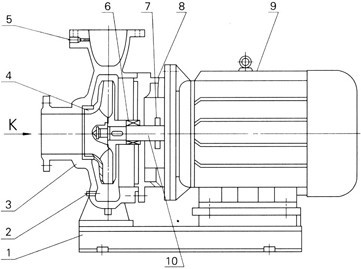

產品結構
